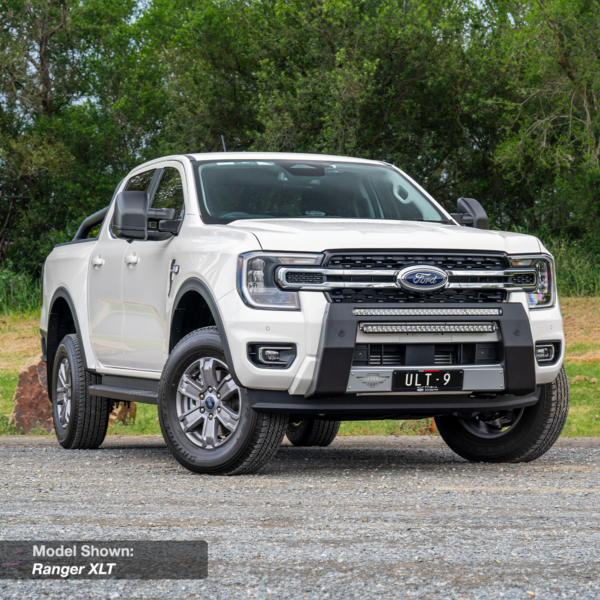

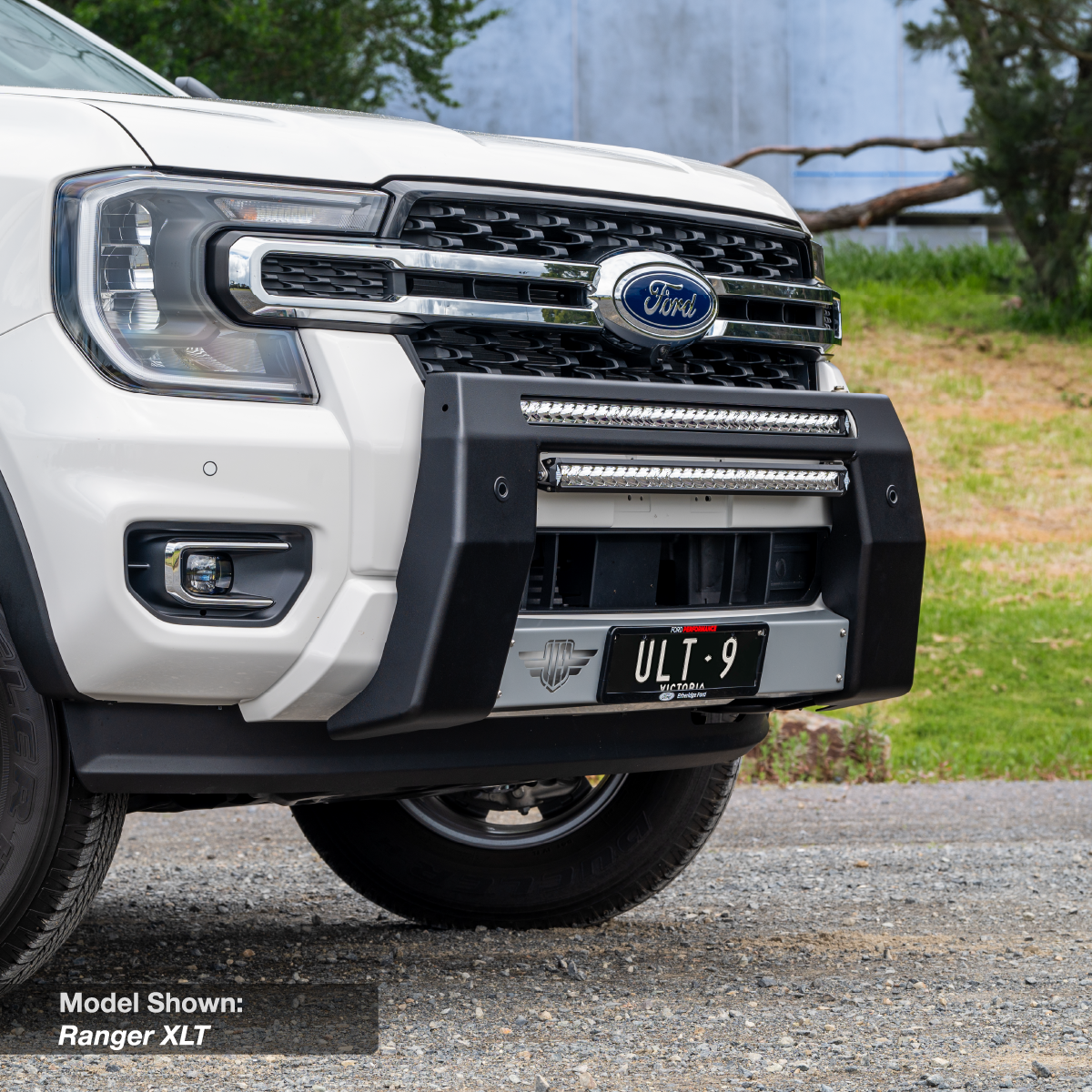

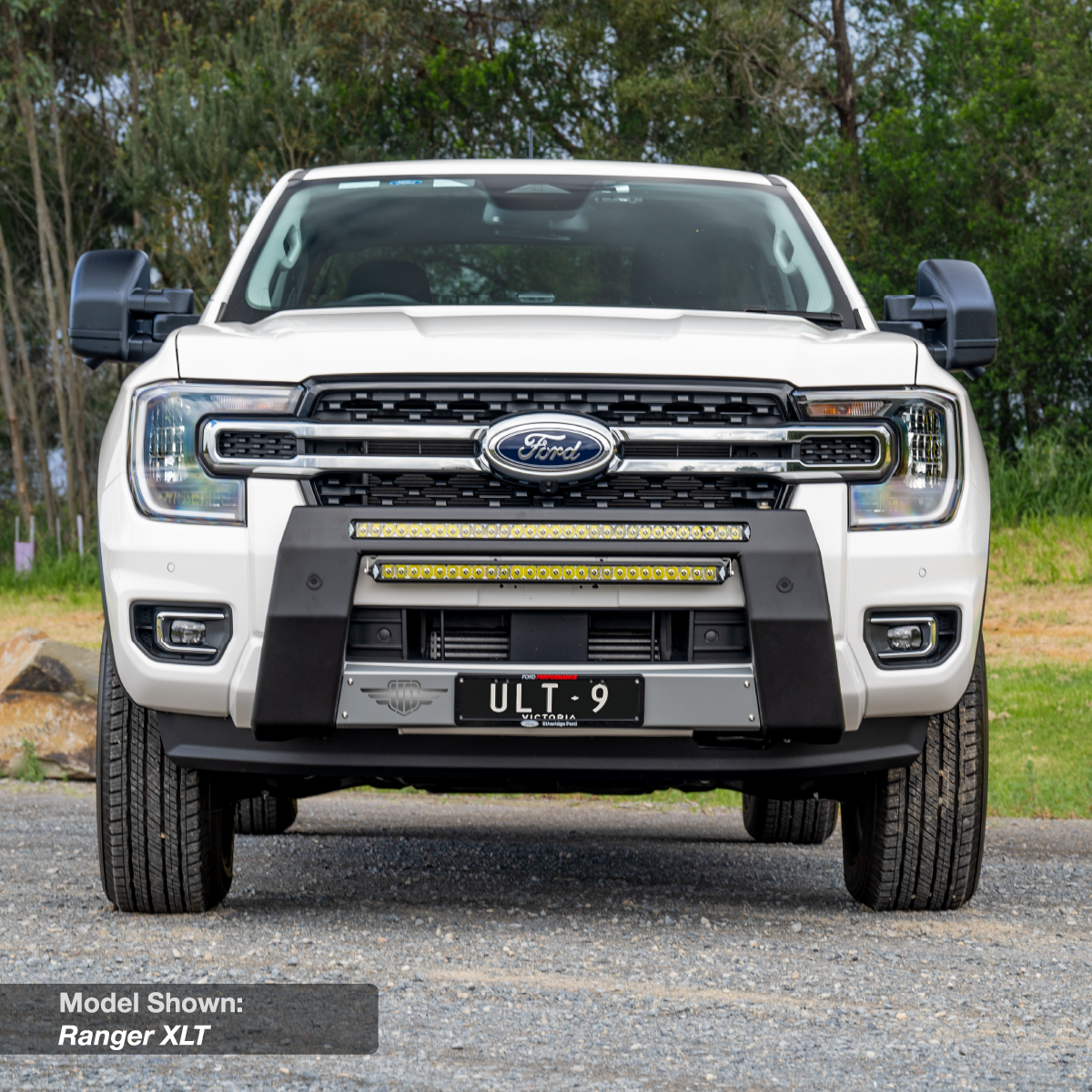

The Ultimate Nudge Bar to suit Ford Ranger (2022 – ON, 2nd Gen T6)

$1,495.00

SKU: ULTN05030-2 Category:

Description

Details

Ultimate9 Nudge Bars provide a layer of protection for the front of your vehicle to shield vital components such as the radiator in the event of an accident.

Their design has a low impact on front-end weight and also functions as a mounting platform with provision for UHF & mobile phone antennas, sand flags and additional Ultimate9 LED Light Bars.

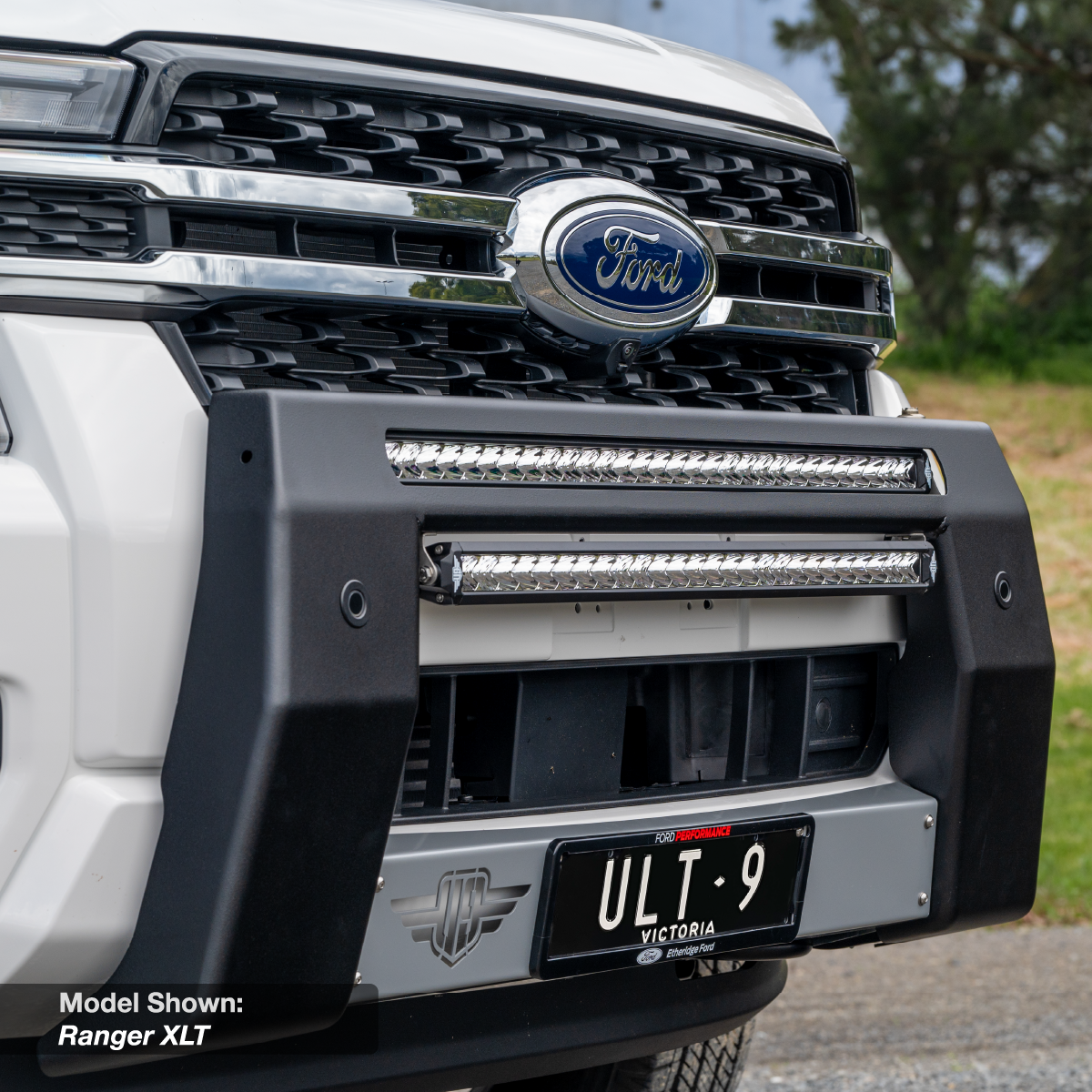

Designed, engineered and manufactured in Australia with Australian 3mm steel, the low-profile, over-bumper design offers minimal forward projection and is packaged with an Ultimate9 LED Light Bar nestled in the front face.

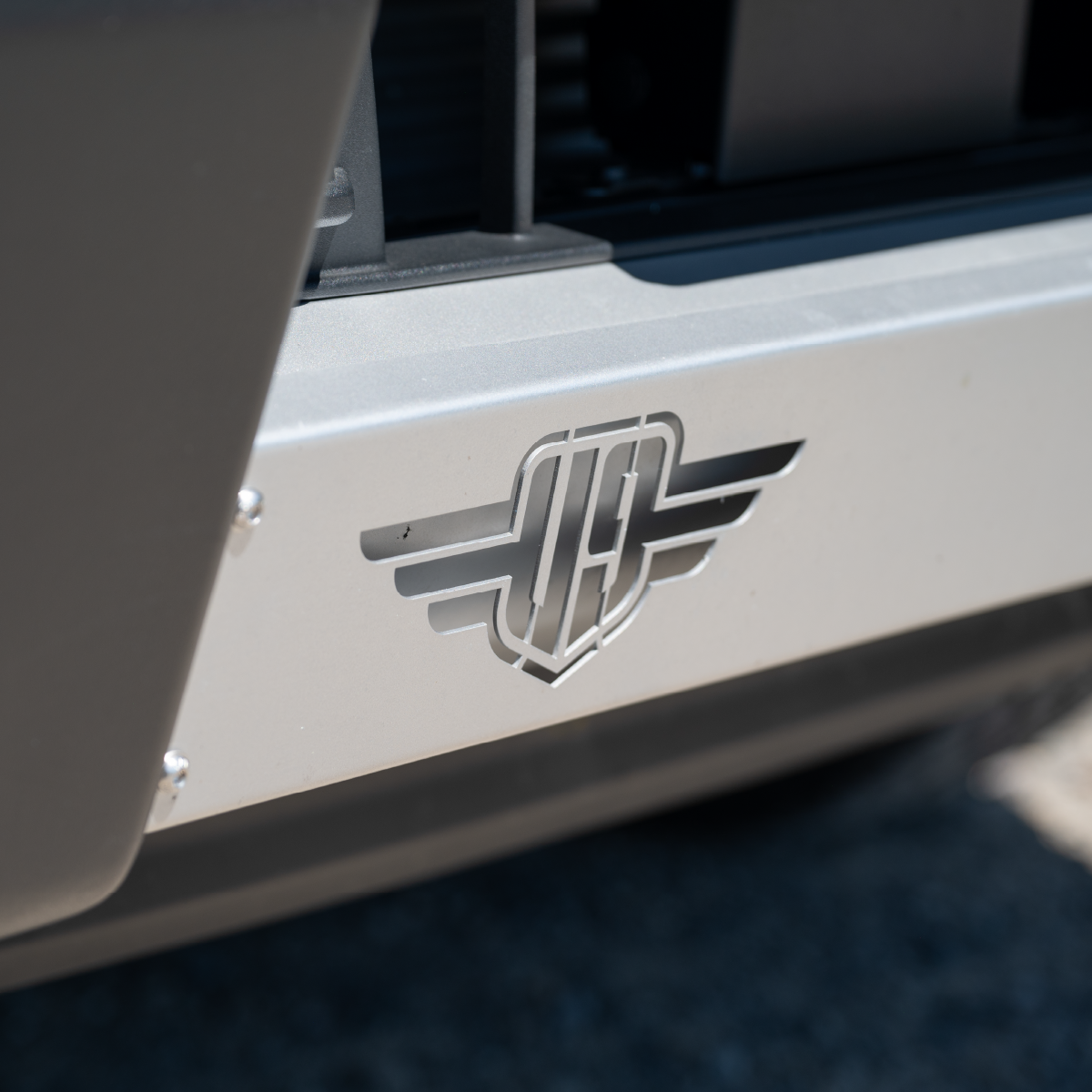

Finished in a Black textured powder coat with a Silver coated centre pan for corrosion protection and a modern feel.



Compatibility:

Suits the following Ranger variants:

  • Platinum
  • Sport
  • XLT
  • XLS
  • XL
Features:
  • Australian-made: Designed, engineered, and manufactured in Australia.
  • Steel Frame: 100% Australian-made steel.
  • Airbag Compatible: Tested for airbag compatibility
  • ADR Compliant: Designed to meet ADR standards.
  • Low Profile: Over bumper design with minimal forward projection
  • LED Lighting: Includes an Ultimate9 LED Light Bar 30″
  • Lightweight: Weighing under 30Kg with included light bar
  • Corrosion Protected: Zinc-plated.
  • Finish: Black textured powder coat & silver coated centre pan



Kit Includes:
Models with upfitter

• Nudge Bar
• Ultimate9 LED Light Bar 30″
• DTP Connector Kit
• Parking Sensor Extension Looms
• Parking Sensor Holders
• Parking Sensor Blanking Plates
• Slimline Number Plate Mount
• Installation Hardware
• Instructions

Models without upfitter
• Nudge Bar
• Ultimate9 LED Light Bar 30″
• Ultimate9 Auxiliary Loom Twin Output Connector
• Illuminated Rocker Switch
• High Beam Adaptor
• Parking Sensor Extension Looms
• Parking Sensor Holders
• Parking Sensor Blanking Plates
• Slimline Number Plate Mount
• Installation Hardware
• Instructions



Specifications:

• Material (nudge bar): 3mm steel
• Material (centre pan): 1.6mm steel
• Material (mounts): 6mm steel
• Protective coat: Zinc Plated
• Finish Coat (nudge bar): Black textured Powder Coat
• Finish Coat (centre pan): Silver Powder Coat
• ADR Compliant
• Airbag Compatible
• Dimensions: (L) x (W) x (H)
• Weight: < 30Kg



Additional information

Select

With Overhead Switch Bank Models (Upfitter), Without Overhead Switch Bank Models (Non-Upfitter)
